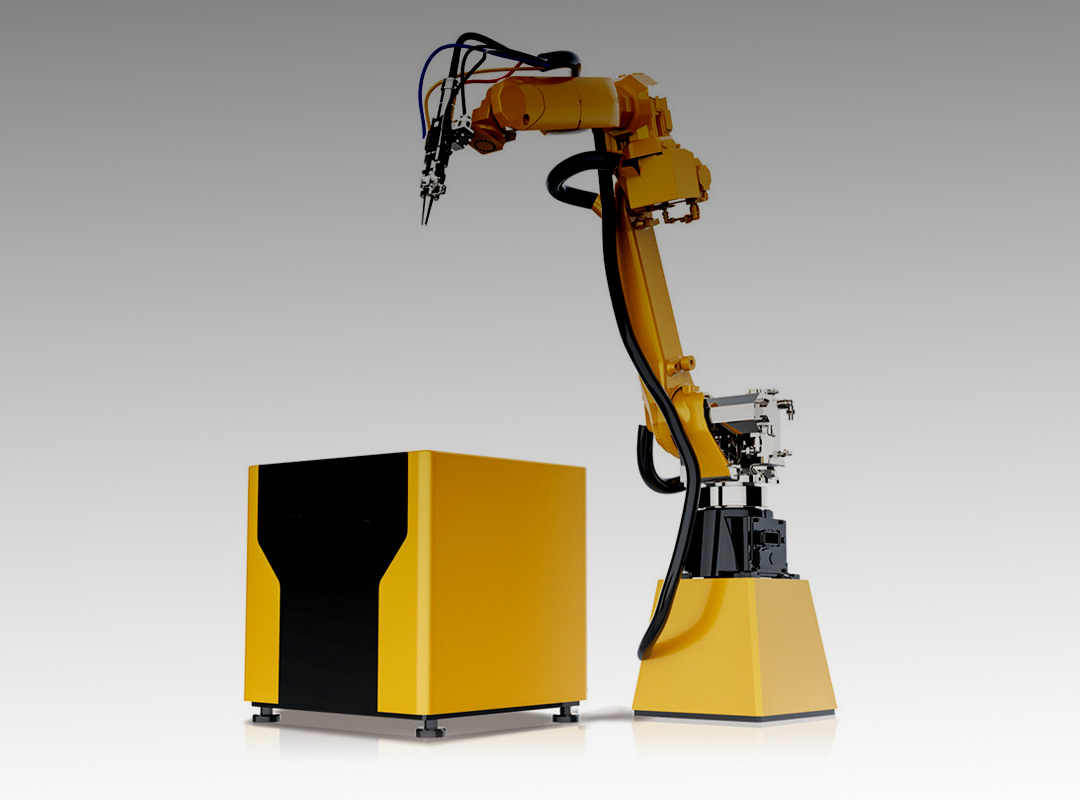

Robotic Laser Welding Machine Manufacturers in Pune
Genesys Laser Pvt Ltd is the leading robotic laser welding machine manufacturers in Pune. Introducing the new generation of Robotic Laser Welding with new technology, imagine stunning joining of robot capability beauty and laser precision accuracy that brings unmatched speed, power, and beauty appearance.
Robotic Laser Welding Machine Suppliers in Pune
As the prominent robotic laser welding machine suppliers in Pune. Revolutionary technology is penning new business book recipes for business as it seeks greater efficiency, lower cost, and higher weld accuracy reliability. Here's beginning with the top most widespread of the most general types, unimaginable benefits, and endless applications of Robotic Laser Welding Machines transforming fabrication.
Why to choose Robotic Laser Welding Machine?
Taking record speed and accuracy for more quality welds. Partial-mechanization of welding to save time, labor cost. Greater ability to weld complex shapes and varied materials. Less long-term cost by reducing wastage and high volume.
Types of Robotic Laser Welding Machine
Being as robotic laser welding machine manufacturers in Pune, as per speed, creativity and penetration types are modified which are given below.
- Fiber Laser Welding Robots: These utilize a fiber optic cable as a laser beam transmission, and they have high quality beam, high efficiency, and material type and processing flexibility to handle various materials and complex shapes.
- CO2 Laser Welding Robots: We employ a gas mixture to generate the laser beam, thereby making CO2 lasers to be very powerful and have the ability of welding thick material and creating thin weld penetration.
- Nd:YAG Laser Robots for Welding: These are solid-state lasers possessing a shorter wavelength with higher absorption in certain metals and also employed in welding in pulsed and continuous mode. Spot welding and precision welding operations requiring higher accuracy utilize them.
- Hybrid Laser-Arc Welding Robots: By taking advantage of the strengths of laser welding and conventional arc processes (i.e., GMAW or GTAW), they provide high gap tolerance, weld quality, and deposition rate.
- Scanning Laser Welding Robots: Utilizing mirrors to rapidly sweep the laser beam across the workpiece, these robots enable high-speed welding of complex contours and numerous weld points without robot-arm relocation.
Technical Specification of Robotic Laser Cutting Machine
We have added below a technical sheet of robotic laser cutting machine in Pune that provides more technical information such as:
| Feature Category | Specification | Details/Range |
| Robot Manipulator | Number of Axes | 6-Axis (minimum, some advanced systems may have 7 or more) |
| Maximum Reach | 1.4m to 3.0m (and beyond, depending on the application) | |
| Maximum Payload | 5kg to 20kg (sufficient for typical laser welding heads and small fixtures) | |
| Repeatability | ±0.03 mm to ±0.08 mm | |
| Maximum Speed (each axis) | Typically 100°/s to 400°/s (rotational axes), and corresponding linear speeds for articulated arms | |
| Protection Rating | IP54 to IP67 (depending on the environment, with higher ratings for harsh conditions) | |
| Laser Source | Laser Type | Fiber Laser (most common for industrial applications due to efficiency, beam quality, and reliability) |
| Laser Power Output | 1kW to 6kW (and higher for specialized thick material welding) | |
| Wavelength | 1070 nm (typical for fiber lasers) | |
| Beam Delivery | Fiber optic cable (single-mode or multi-mode, depending on the application) | |
| Laser Power Stability | < ±1% over 8 hours | |
| Modulation Capability | CW (Continuous Wave) and Pulsed (with frequency up to kHz range) | |
| Welding Head | Type | Scan welding head (galvo-based for high-speed, small weld seams), conventional fixed head (with or without oscillation), wobble welding head (for wider seams and gap bridging), remote welding head |
| Focusing Optics | High-precision lenses with adjustable focus spot size | |
| Protective Measures | Integrated cover slide protection, crossjet/air knife for spatter and fume removal, collision detection | |
| Seam Tracking System (Optional) | Real-time tracking using laser sensors, vision systems (camera-based), or through-the-arc sensing | |
| Wire Feeding System (Optional) | Cold wire or hot wire feeding units with precise control of feed rate and timing | |
| Control System | Robot Controller | Industrial-grade controller with real-time processing capabilities, advanced path planning algorithms, and user-friendly interface |
| Laser Controller | Dedicated controller for precise laser power control, pulse shaping, and safety interlocks | |
| Synchronization | High-speed communication protocols for synchronized movement of the robot and laser output | |
| Programming Methods | Teach pendant programming, offline programming software (with simulation and collision detection), CAD/CAM integration | |
| Workstation & Fixtures | Work Cell Enclosure | Class 1 laser safety enclosure with viewing windows and access doors with safety interlocks |
| Part Clamping/Fixturing | Pneumatic or servo-controlled clamps, custom-designed fixtures for precise part positioning and repeatability | |
| Positioners (Optional) | Single or multi-axis positioners (rotary tables, tilt tables) for increased accessibility and complex geometries | |
| Software & Interface | Welding Process Control | Parameter database, real-time monitoring of welding parameters (power, speed, temperature), data logging, quality control features |
| Diagnostic Tools | Integrated diagnostics for troubleshooting and maintenance | |
| Connectivity | Ethernet, PROFINET, PROFIBUS, and other industrial communication protocols for integration with other automation systems |
Benefits of Robotic Laser Welding Machine:
Serve as robotic laser welding machine suppliers in Pune, as per different shape and design need benefits served which are given below.
- High Speed and Productivity: Laser welding has very high welding speed compared to traditional methods and therefore, high cycle time saving and maximum overall production. Efficiency, of course, implies reducing the cost of manufacture and turnaround in a rapid way.
- Better Weld Quality and Accuracy: The very, very thin laser beam can produce very thin, very deep welds with very low heat-affected zones and very high strength, low distortion, and good-looking surfaces.
- Material and Application Flexibility: Robotic laser welding is extremely flexible in the wide range of metals like steel, aluminum, stainless steel, and dissimilar metals with the ability to operate on complex shapes and intricate designs.
- Less Post-Welding Waste Material: Laser welding precision minimizes post-weld material loss and secondary operation expense as there is minimal or no spatter or post-weld cleaning or machining. That's a clean and green process.
- Automation and Labour Cost Savings: Automation of welding through the integration of the laser welding into robot systems reduced labour cost saving, enhanced consistency, and enhanced working conditions.
Applications of Robotic Laser Welding Machine
As robotic laser welding machine manufacturers in Pune, applied in different industries as per regulatory standard maintenance which are given below.
- Automotive Industry: With robot laser welder automobile chassis and body parts, exhaust pipes, and gears, robot laser welding provides the energy, accuracy, and quickness required in mass-volume automotive production.
- Aerospace industry: Laser welding and its capability to solder extremely thin high-strength alloys with low heat input have an ideal niche application for mission-critical aerospace engineering operations such as joining aircraft fuselage panels, engine components, and turbine blades for safety and efficiency.
- Microelectronics and Electronics: Fine control and precision laser welding is needed in laser welding of thin and delicate components in electronics like printed circuit boards, sensor encapsulation, and battery contacts for reasons of miniaturization and reliability.
- Medical Device Fabrication: Medical device manufacture like surgical instruments, implants, and diagnostic imaging equipment calls for high accuracy and sterility laser welding for the reasons of providing biocompatibility and adhering to strict regulatory standards.
- General Fabrication and Manufacturing: Automated laser welding is utilized by more than a growing number of production companies to cut and assemble sheet metal parts together, to machine one-off pieces, and create intricate profiles with versatility.
Genesys Laser Pvt Ltd is the well-known robotic laser welding machine manufacturers in Pune as well as outstanding robotic laser welding machine suppliers in Pune are innovation within welding equipment whose compromise on the combination of strength, precision, and agility is improved compared to the automated variant. Its ability to weld with higher quality at higher speed and lower cost is beneficial to companies that like being ahead of production. The more advanced and developed steam technology one obtains, the more advanced and developed robot laser welding application and usage will be, going to even newer heights, and hence it is the future of material assembling. Get in touch with us today!
FAQs
The price is highly dependent on variables such as laser power, robot size and coverage range, system complexity, and frills and thrills added. It may be tens of thousands to a few hundred thousand of dollars.
Robotic laser welding is a broad term and will join a vast range of metals such as carbon steel, stainless steel, aluminum, titanium, nickel alloys, and even two incompatible metals with different chemical compositions.
Yes, sometimes it involves the professional training in robot programming, laser parameter adjustment, control protection equipment setup, and continuous maintenance.
